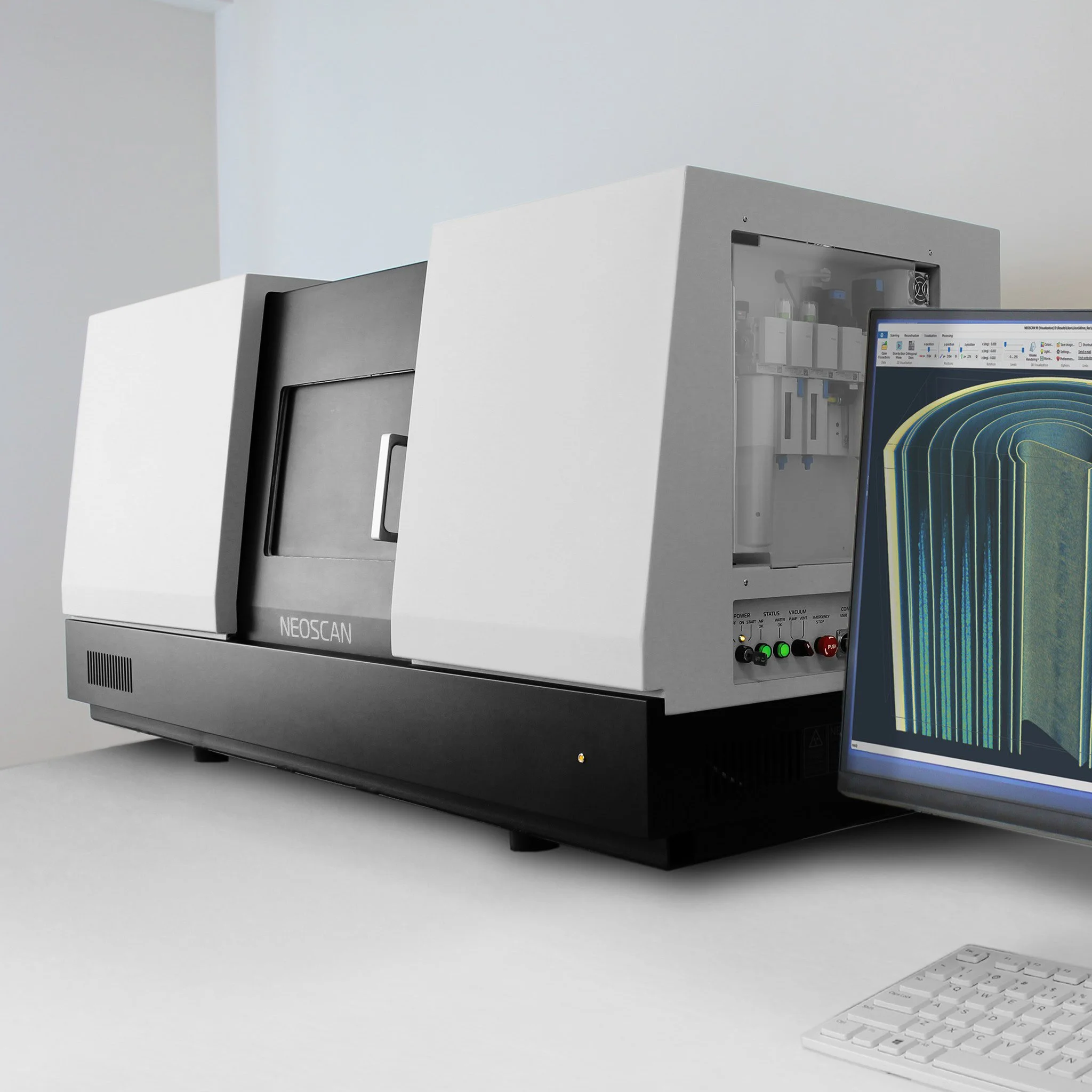

Scientific grade, highest resolution micro-CT scanner
Sub-micron pixel size at maximum magnification
With possibility of phase contrast retrieval
Low contrast resolution 2 um
15 x better 3D resolution compared to micro-CT with 5um source spot size
X-ray source up to 110 kV
Covering a wide range of applications like geology, composites, bone, dental, electronics,...
Fits objects up to 100mm diameter and 200mm length
Generous sample size
World's first benchtop nano-CT scanner
Personal nano-CT on your desk
Cutting edge technology integrated into a benchtop system
Highest spatial resolution
40nm voxel size, 300 nm resolution (on JIMA pattern)
Ease of operation across a wide range of tasks
Standard dual-detector configuration in variable geometry, easily switchable with a single mouse click
Unique insights into your samples
Integrated full-field micro-XRF module

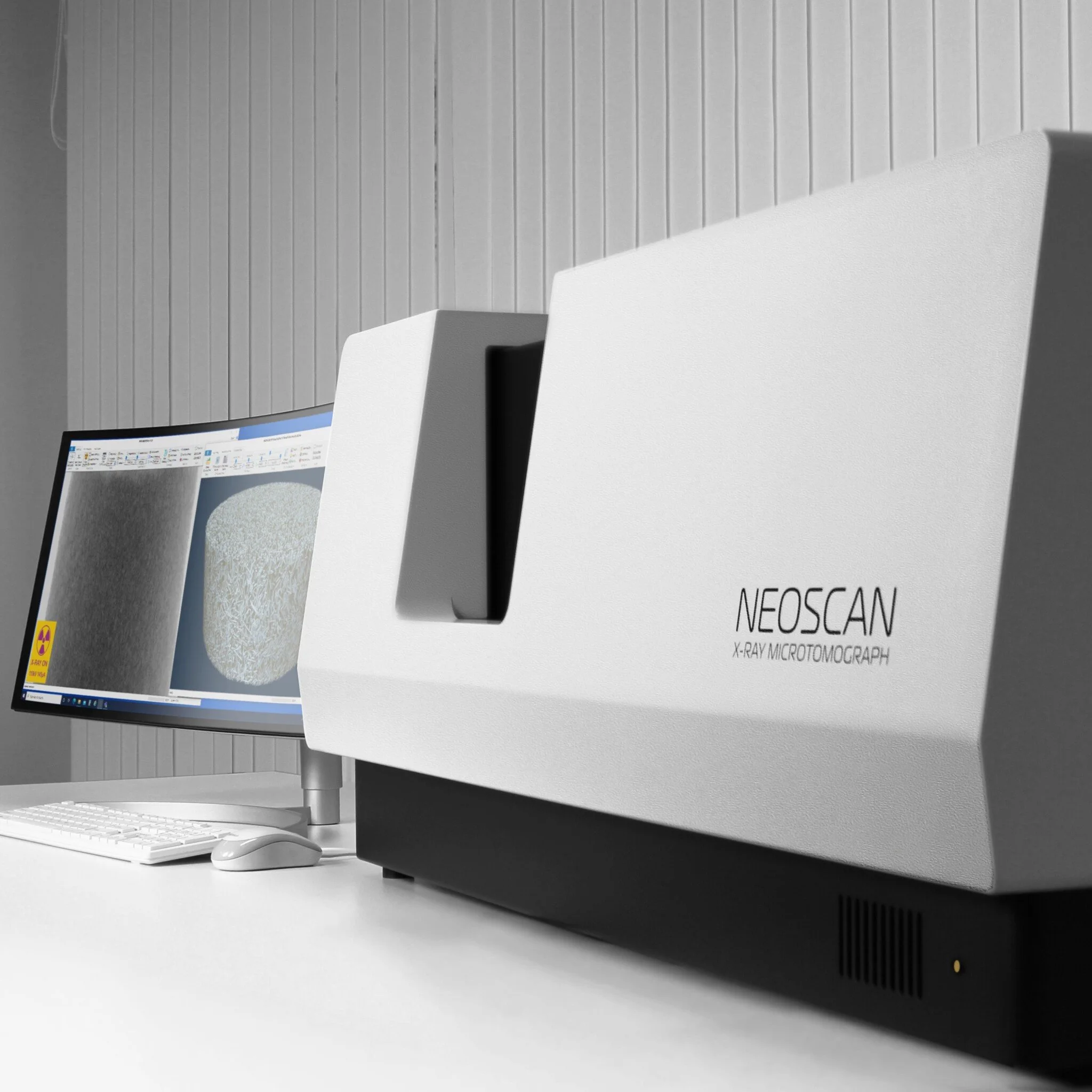

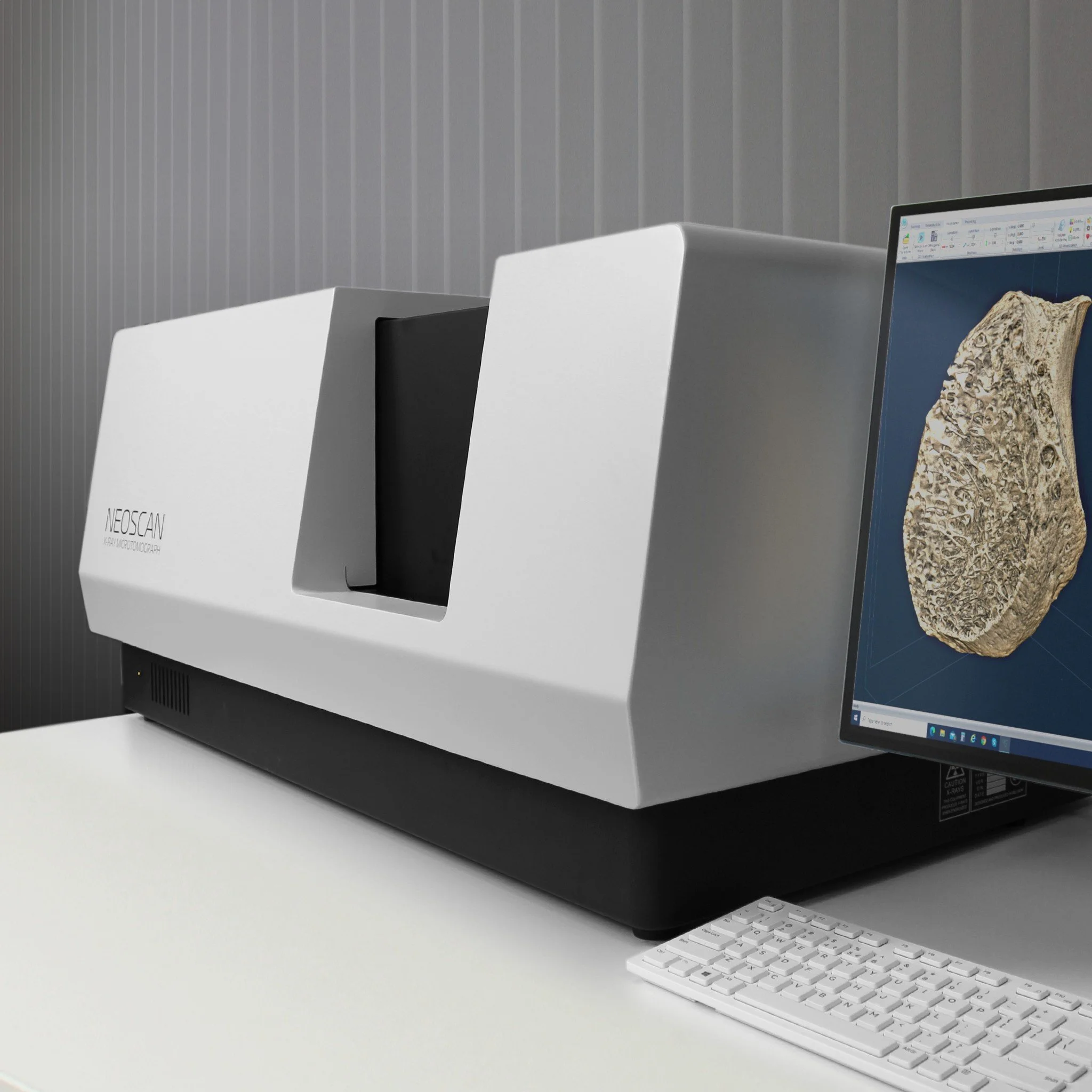

Micro-CT scanner with ultimate performance to price ratio
2.5 um minimal pixel size
Detects details down to a couple of microns
<4 um low contrast resolution
High resolution for wide application range
7MP Flatpanel
Fast scanning with more details in every slice
Fits objects up to 100mm diameter and 220mm length
Generous sample size

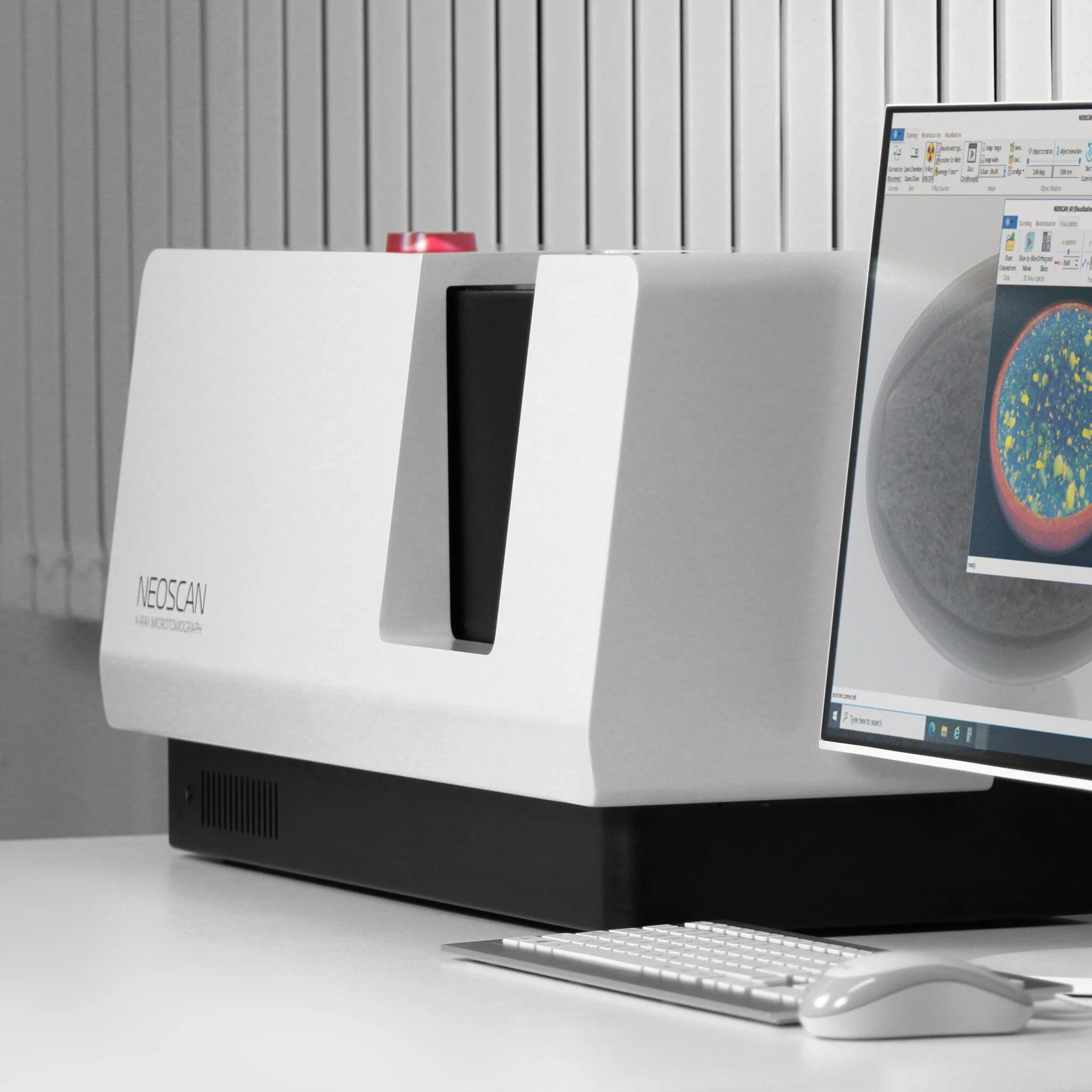

Compact, accessible micro-CT scanner
X-ray source up to 65 kV
For use in polymer, geological, pharmaceutical, bone and dental applications
Spatial resolution of 8 um
Suitable for most day to day applications
Pixel size of 3.8 um in full field-of-view of camera
Large format camera without compromising resolution
Low weight and compact design
Fits your desk
Only requires USB3 connection
Works with most laptops, tablets,...

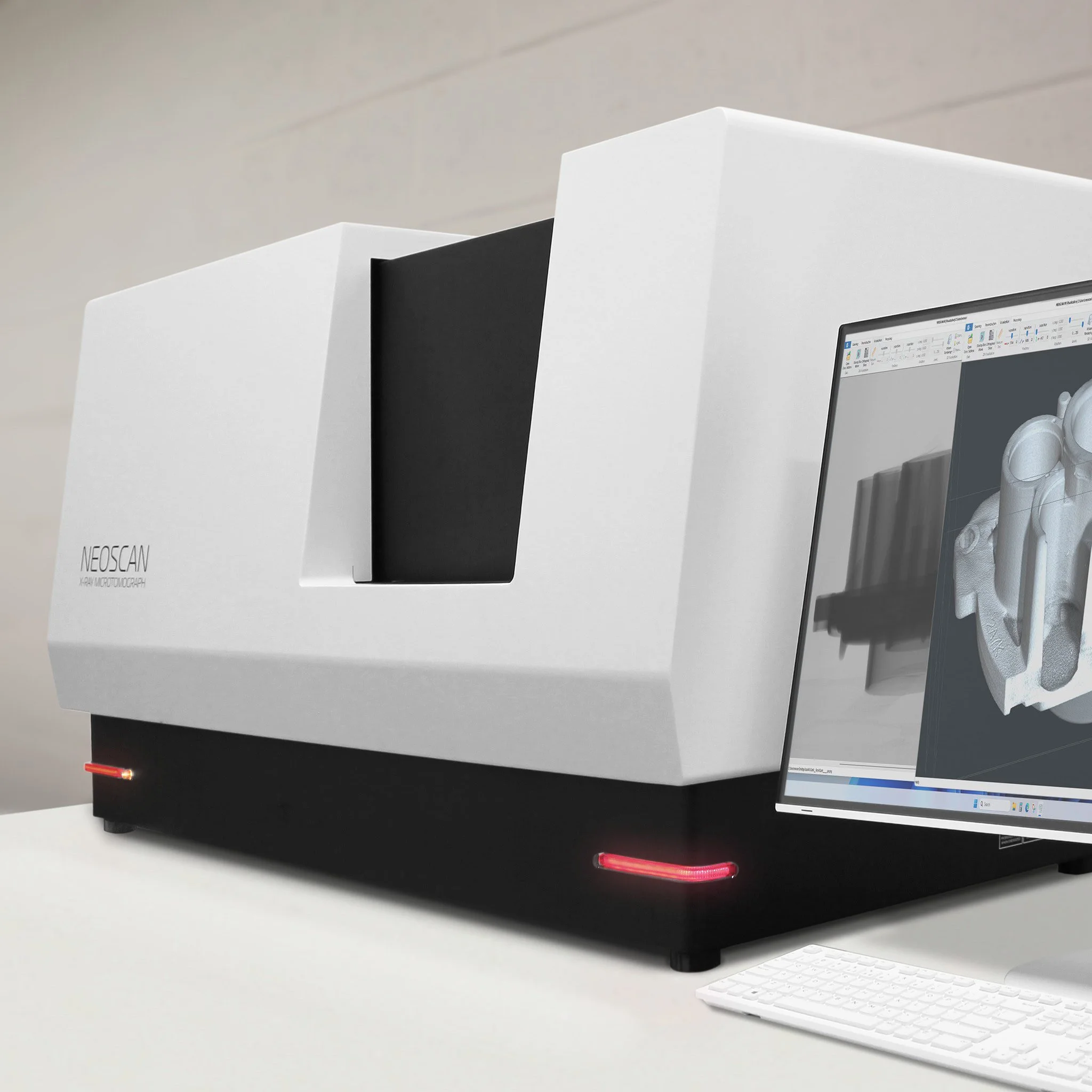

The Benchtop That Thinks Big
Next-Gen Flat-panel detector technology
Large-Scale Imaging with Micro-Scale Precision
Powerful X-ray source up to 150kV/75W
Covering a wide range of applications including geology, paleontology, archeology, (human) bone research, electronics
Fits XL object sizes
Up to 320 mm in diameter and 540 mm in length
Customer-first Design
Built around real-world needs, with rock-solid reliability, intuitive operation, and a long-lifetime detector you can count on

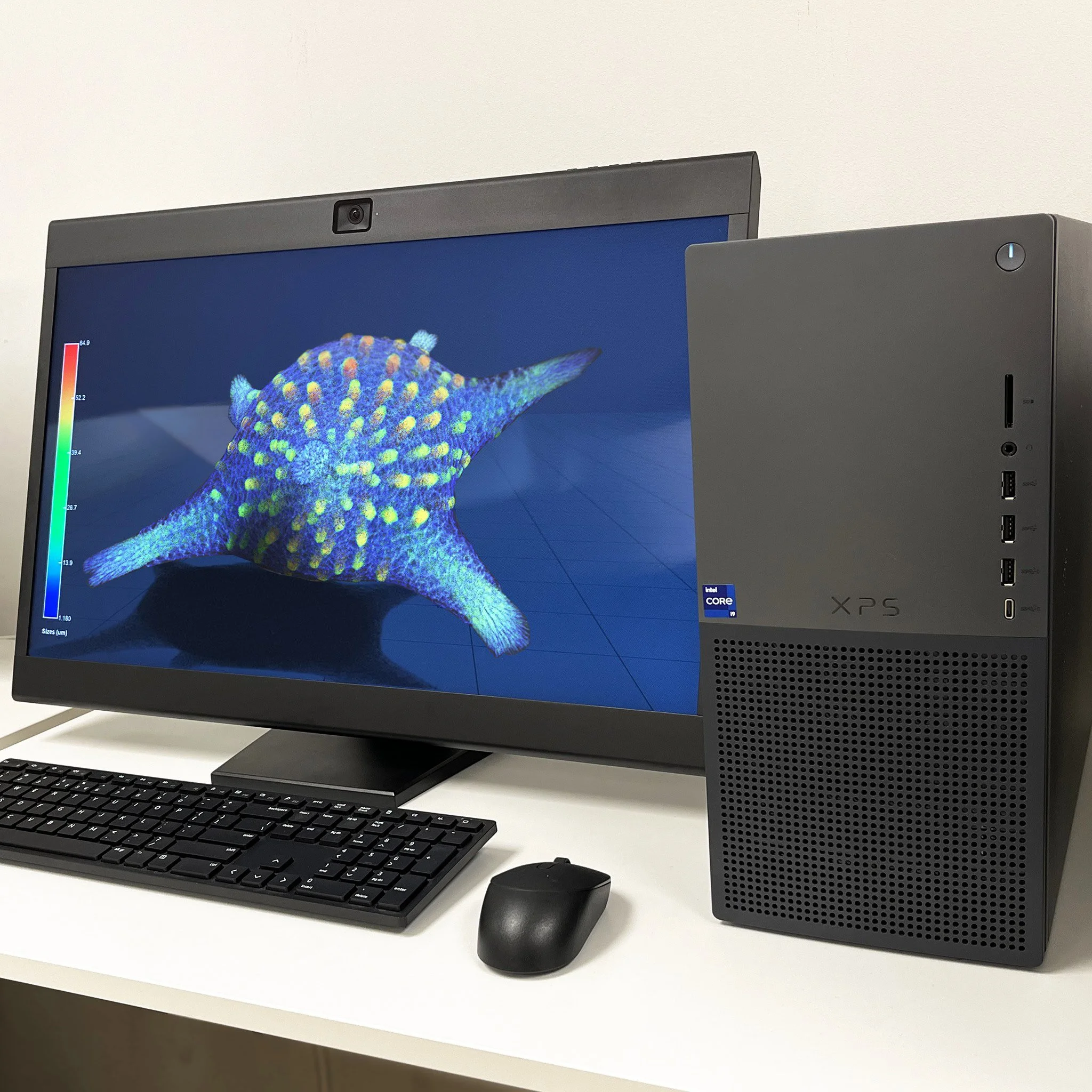

Real-Time 3D glasses-free interactive imaging for the most immersive experience
3D Display
Unlimited spatial reality depth due to fast eye-tracking technology
Glasses-free 3D station
See 3D objects anywhere above and behind the screen without any glasses or headset
NeoSpace software
Interactive 3D spatial rendering with possibility for object manipulations, virtual cut, and creation of 3D movies
Delivering the most immersive experience
Any complex internal 3D microstructure can be seen in fine details and from various angles

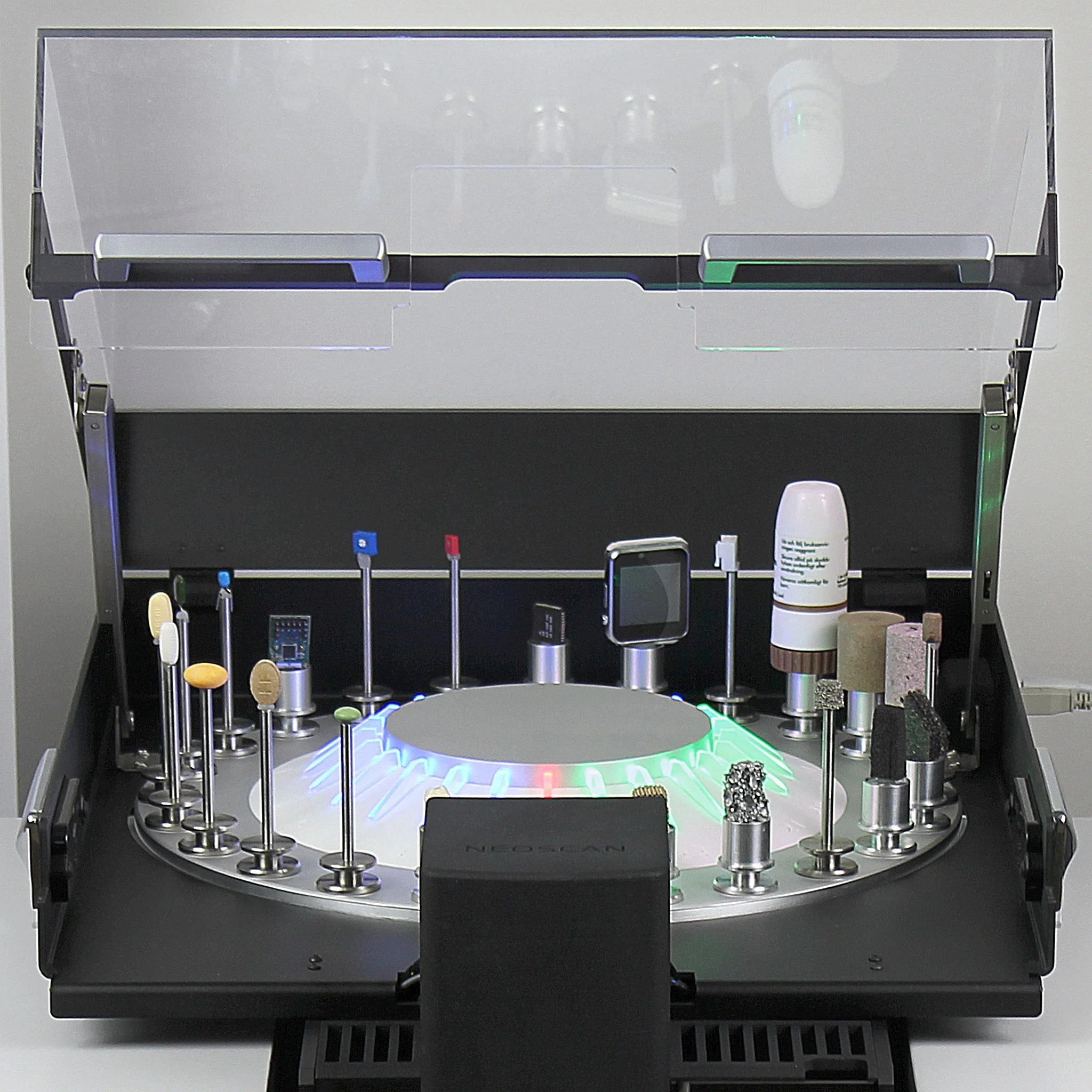

Non-stop automatic 3D scanning of your various samples in N70 and N80
24 positions
High capacity requires less operator interaction
Always accessible (outside shielded area)
Replace scanned samples anytime without interrupting the ongoing scans.
Individual scan protocol for every sample
Automatic and operator-selected protocols can be used
Easy installation
Simple mounting / dismounting by operator.

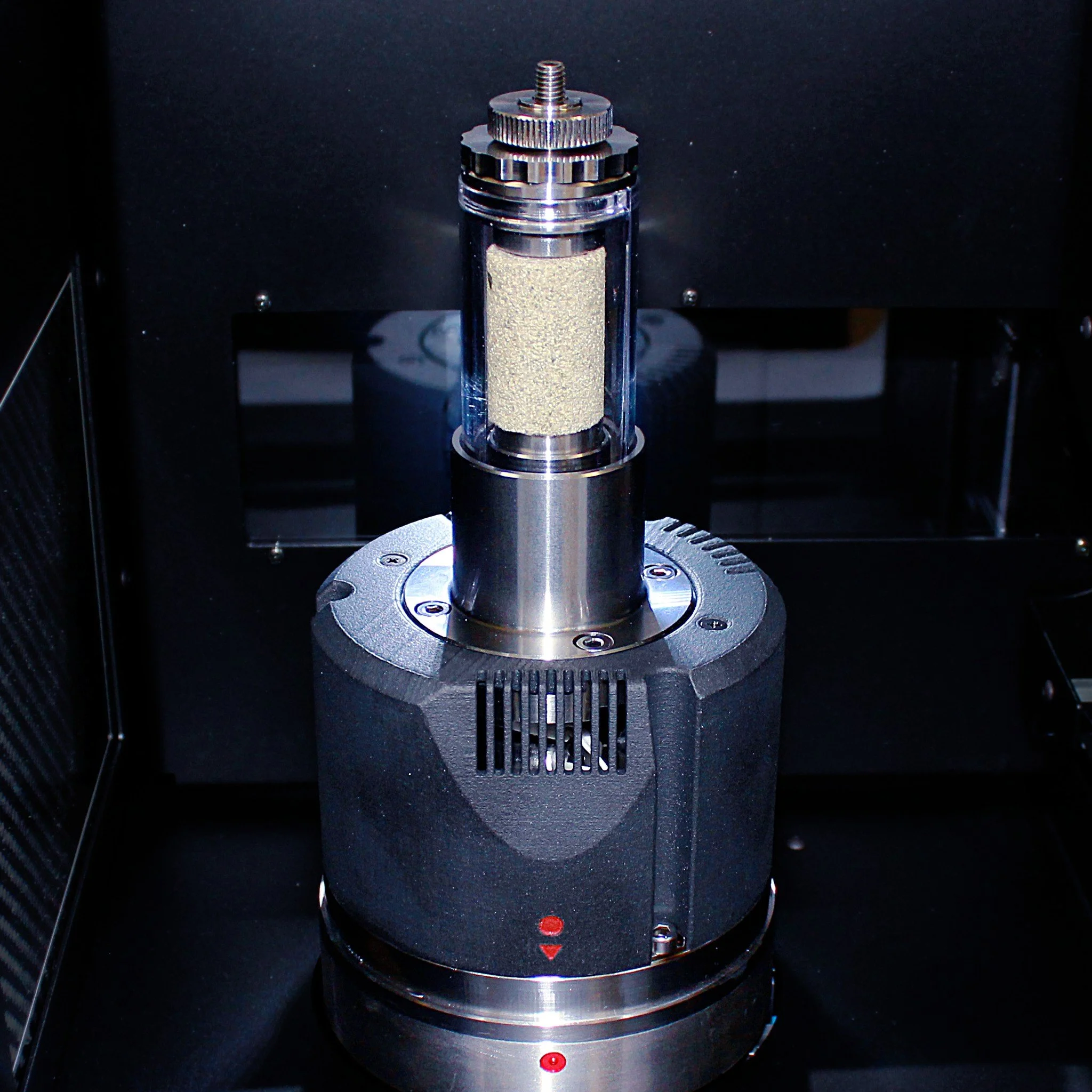

Cooling and heating in a wide temperature range for large object volumes
Cooling and heating
One single accessory for temperature control above and below ambient temperature
-40°C below ambient up to +120°C
A wide range of temperatures can be applied
Thermal stability for large volumes
25W Peltier heatpump keeps objects up to several cubic cm at a selected temperature
No additional cables required
Connection through slip rings embedded in NeoScan systems
In-situ scanning under high forces
Compression and tensile
A single accessory for scanning during force-controlled experiments
+1000N compression, -1000N tension
Controlled high loads can be applied with accurate force and displacement measurements
Large sample volume
Up to 22mm object diameter, up to 33mm start compression length
No additional cables required
Connection through slip rings embedded in NeoScan systems

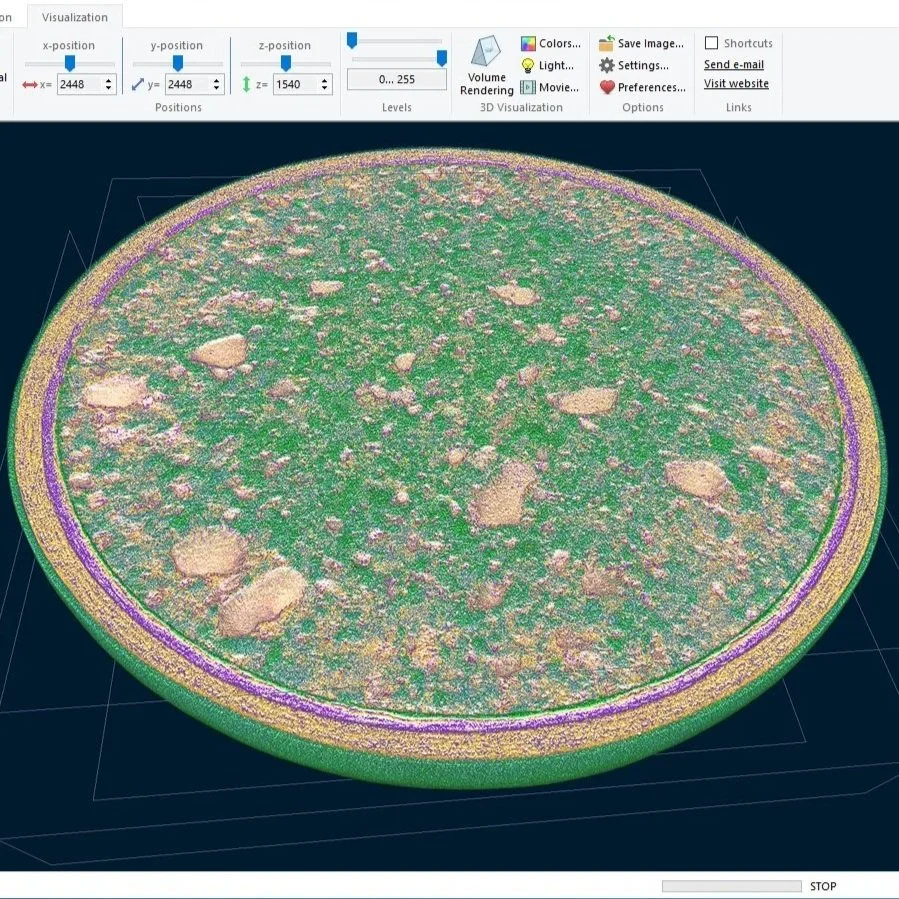

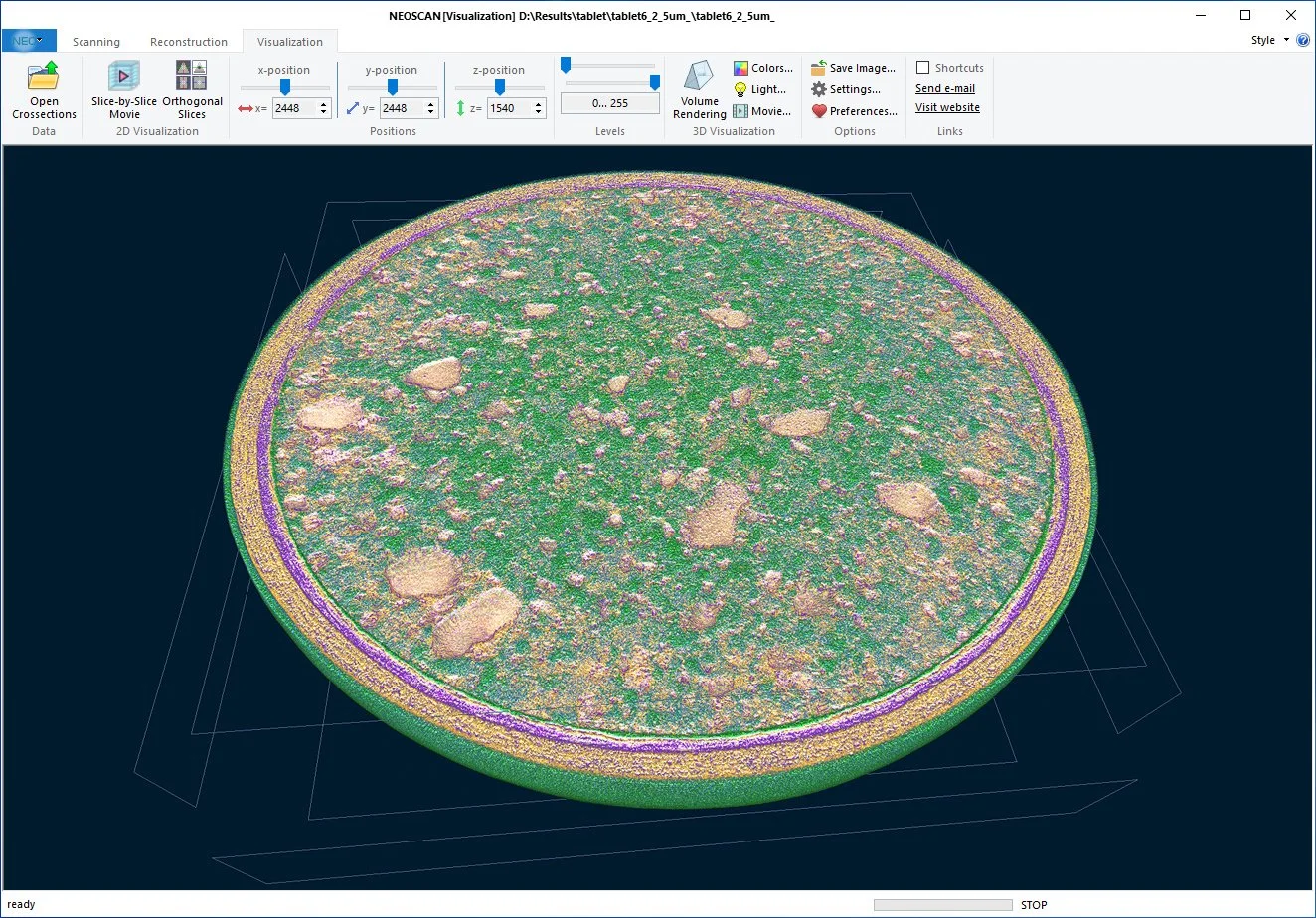

NeoScan microCT systems are supplied with an in-house developed all-in-one software tool for scanner control and processing data. From acquisition of a full series of 2D projection images, reconstruction into a 3D volume, visualization and inspection of this volume in 2D and 3D, to 2D/3D image processing and numerical analysis, the software bundles all complementary steps from sample to result.
The NeoScan software package includes an intuitive user interface, which will guide you through your straightforward workflow, allowing to use it instantly. All final and intermediate results are stored in conventional file formats and can be imported to any other software.
