NEOSCAN N60 Compact, accessible micro-CT scanner
X-ray source up to 65 kV

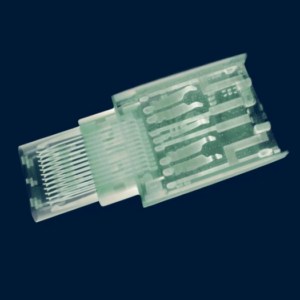

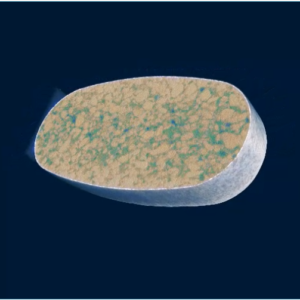

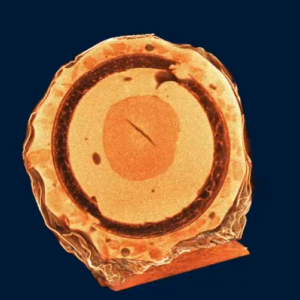

For use in polymer, geological, pharmaceutical, bone and dental applications
Spatial resolution of 8 μm
Suitable for most day to day applications
Pixel size of 3.8 μm in full field-of-view of camera
Large format camera without compromising resolution
Low weight and compact design
Fits your desk
Only requires USB3 connection
Works with most laptops, tablets,...
Features
Related Applications
Pixel size at maximum magnification
True low-contrast 3D resolution
Maximum scanning diameter
Maximum scanning length
Maximum physical object length
Size
Weight
Specifications
3.8 µm
8 µm
19 mm / 36 mm
60 mm
140 mm
800W × 310D × 375H mm
45 kg
Emitter
Maximum voltage
Maximum power
Automatic filter changer, number of positions
X-ray Source
Reflective target
65 kV
50 W
4
Camera sensor
Camera field of view
Camera pixel size
Radiation protection
X-ray Camera
Cooled 15 Mp CMOS
22 × 13 mm
4.25 µm
Yes
