NEOSCAN N80
Scientific-grade, highest resolution micro-CT scanner
Features
Sub-micron pixel size at maximum magnification
With the possibility of phase contrast retrieval
Low contrast resolution 2 μm
15 x better 3D resolution compared to microCT with 5um source spot size
X-ray source up to 110 kV
Covering a wide range of applications like geology, composites, bone, dental, electronics,...
Fits objects up to 100mm in diameter and 200mm in length
Generous sample size

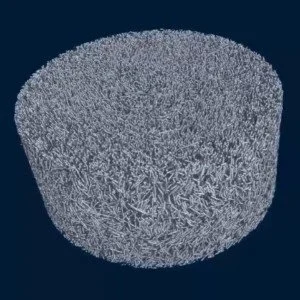

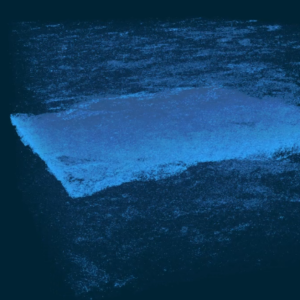

Related Applications
Specifications
Pixel size at maximum magnification
True low-contrast 3D resolution
Maximum scanning diameter
Maximum scanning length
Maximum physical object length
Size/weight
Shielded feedthrough for user cables/pipes
Power & control signals for in-situ stages
Integrated micro-positioning stage
Active artifact suppression
<0.3 µm (CMOS), <1.2 µm (FP)
2 µm
85 mm (CMOS) / 100 mm (FP)
180 mm
220 mm
1200 W × 640 D × 520 H mm / 225 kg
Yes
Yes
Yes
Yes
X-ray Source
Type
Smallest spot size
Maximum voltage
Maximum power
Automatic filter changer
maintenance-free, sealed (Transmission target)
2 µm
110 kV
16 W
20 positions
X-ray Camera
Camera type
Camera field of view (FP / CMOS)
Protection against radiation damage
7 Mp Flat-Panel or 21 Mp CMOS
140 × 120 / 72 × 48 mm
Yes
